SKU - HDR183.36.24

Features:

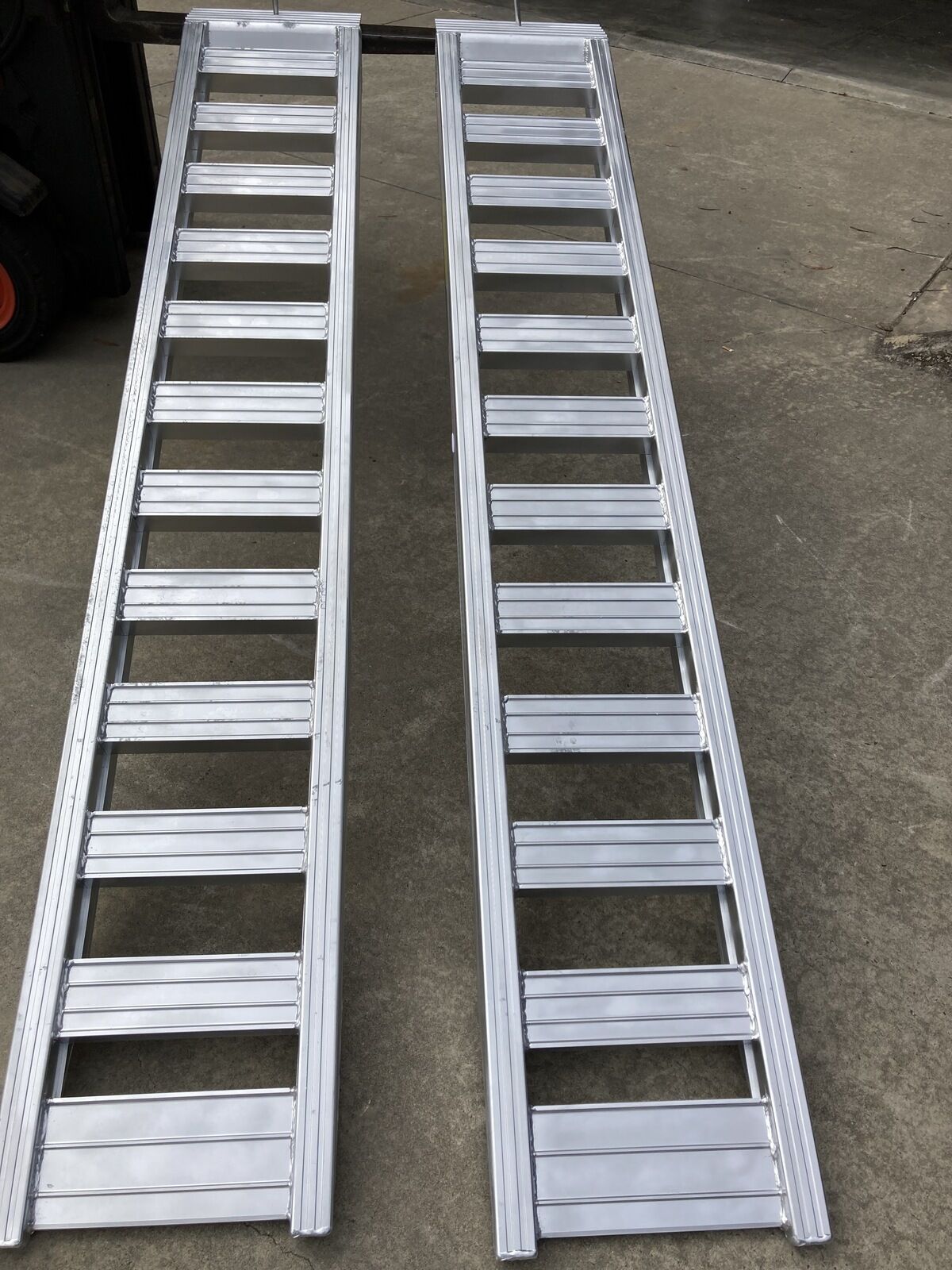

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

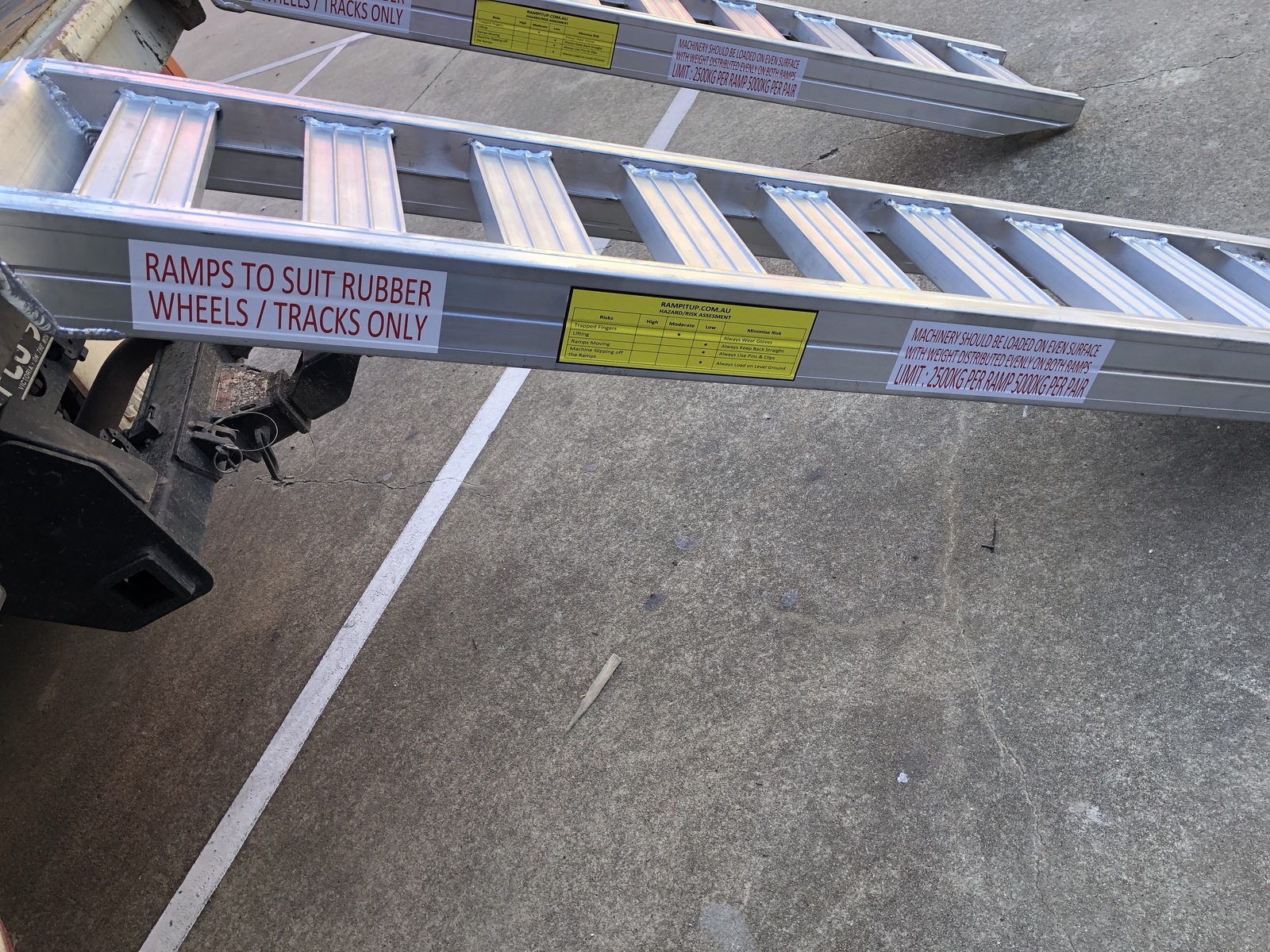

  • These ramps are suited to rubber tracked wheeled machines

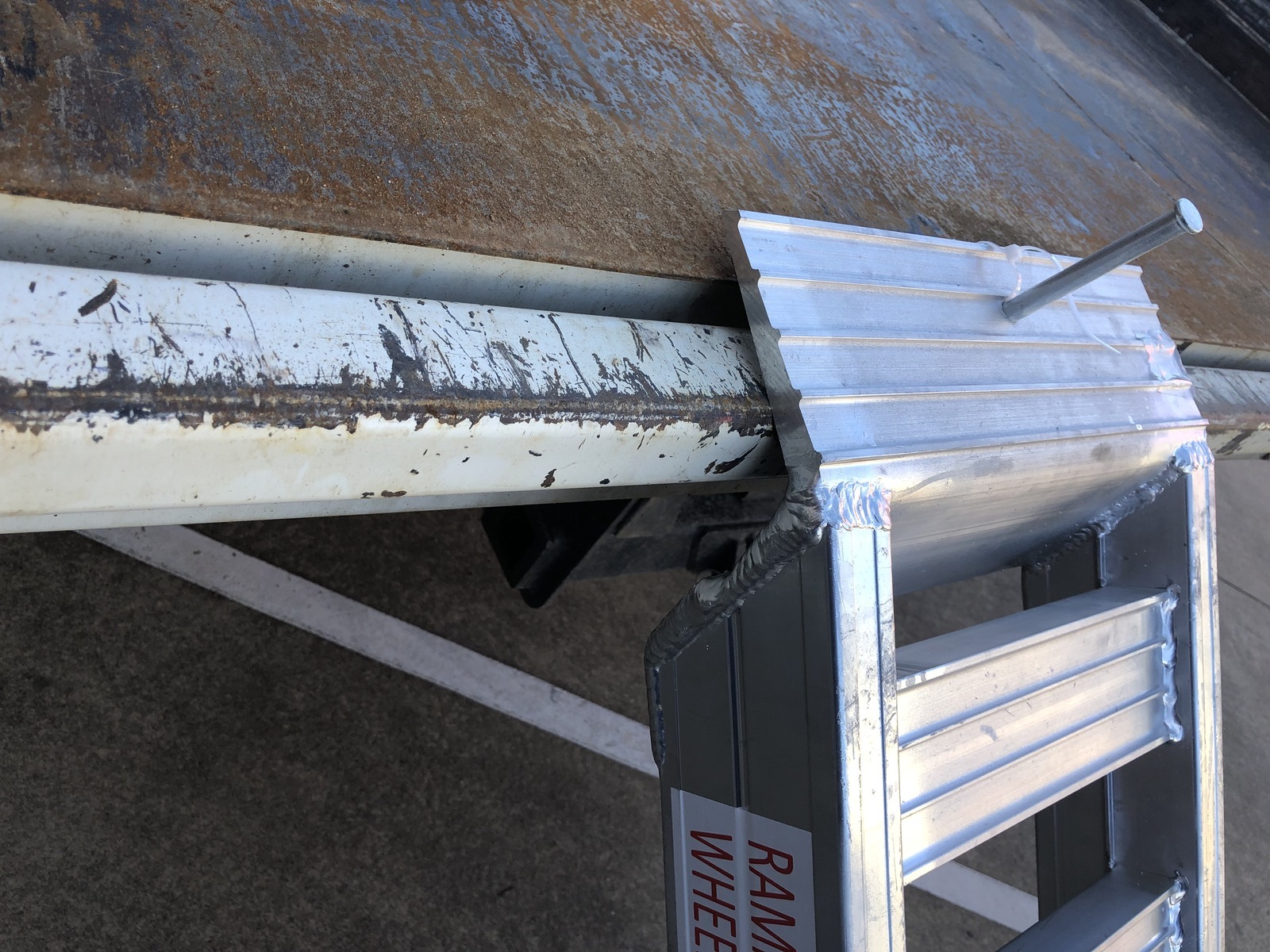

  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 1830
Inner Width (mm) :360
Outer Width (mm) :450
Height of Ramp Profile (mm):82
Rung Type: Square
Max Load Height (mm):540
Weight per Ramp (Kg):15
Load Capacity per pair (Kg):2400

(HDR183.36.24)

SKU HDR183.36.24
Brand Ramptec
Shipping Weight 30.0000kg
Shipping Width 0.450m
Shipping Height 0.170m
Shipping Length 1.830m
Shipping Cubic 0.139995000m3
