SKU -  MHABM-5XHD

Features

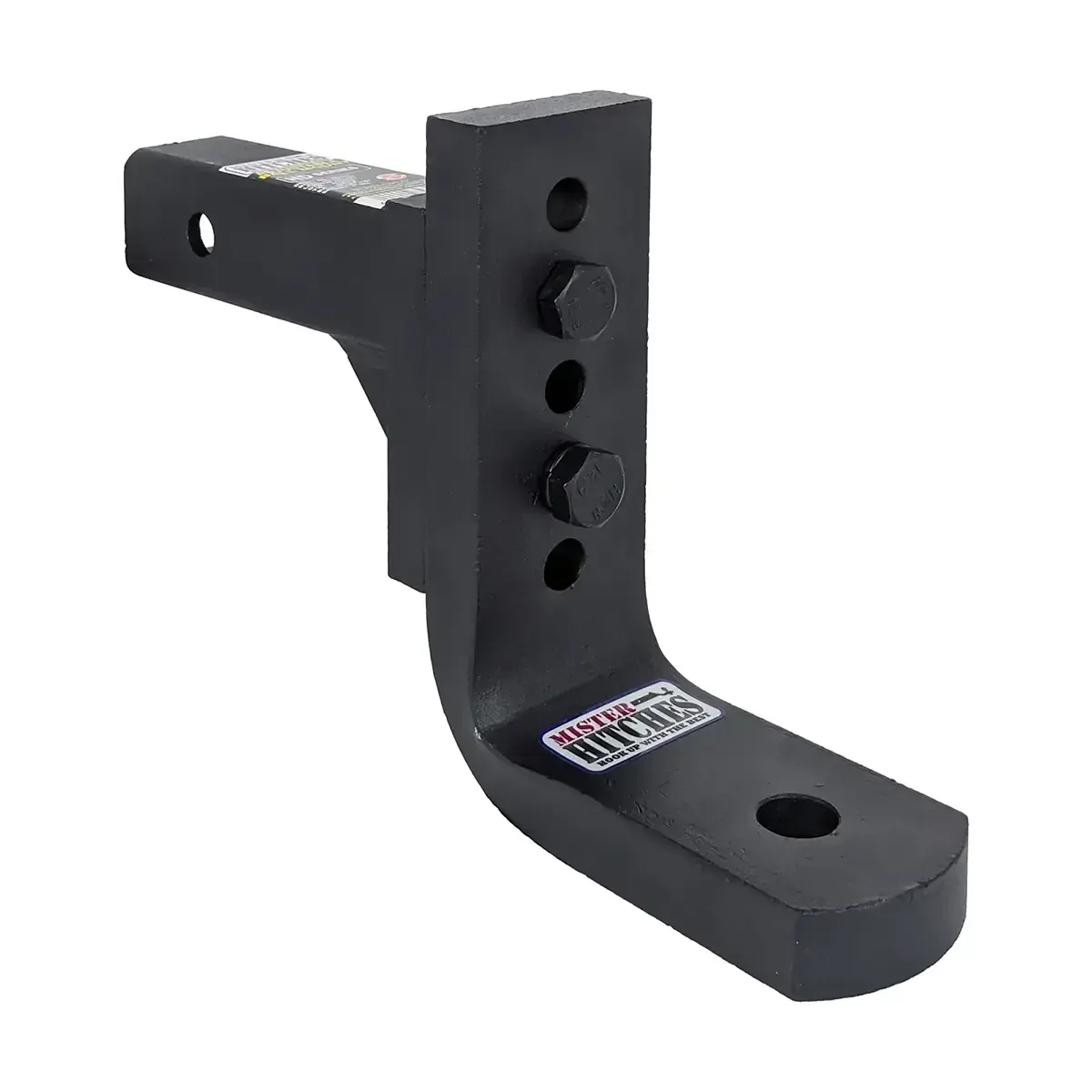

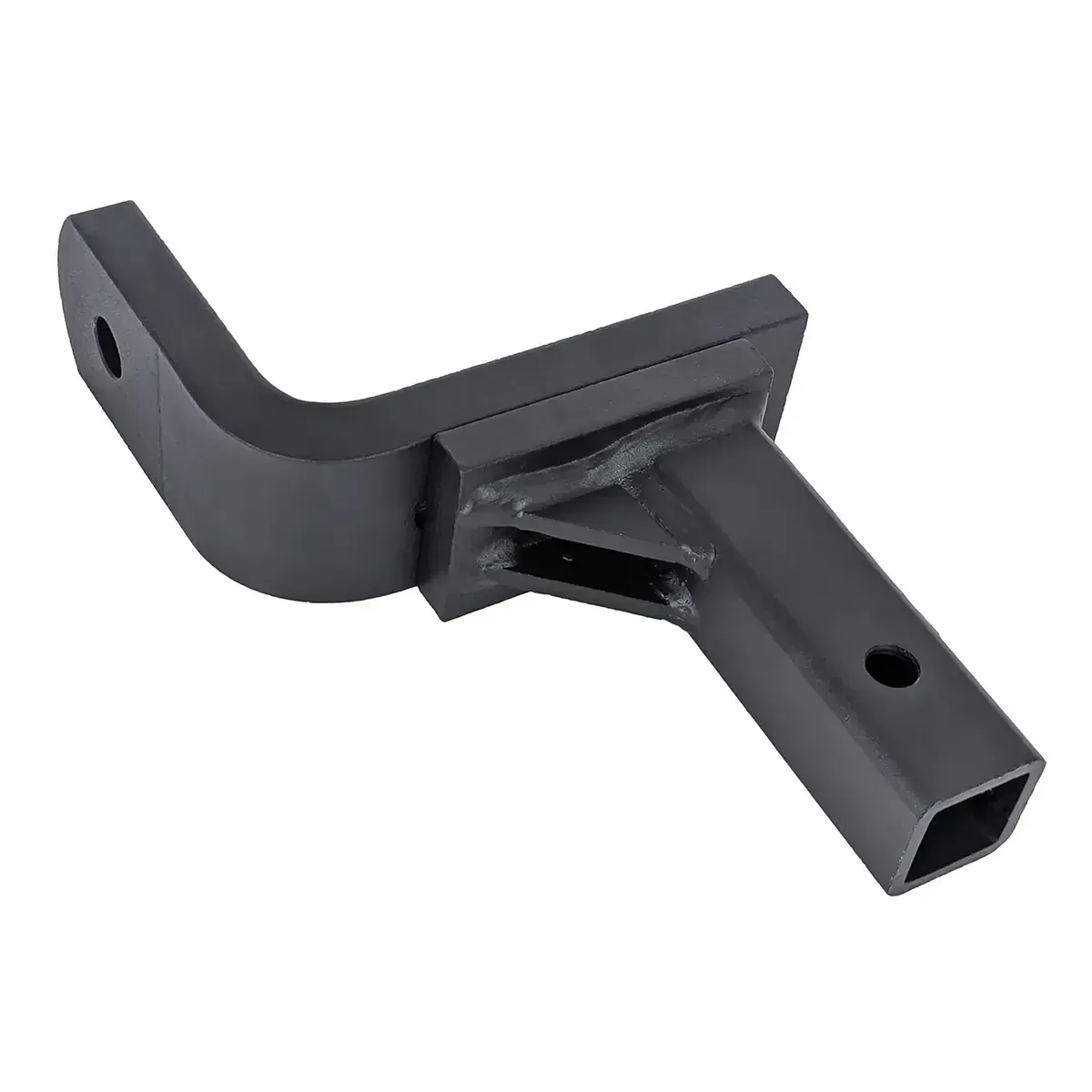

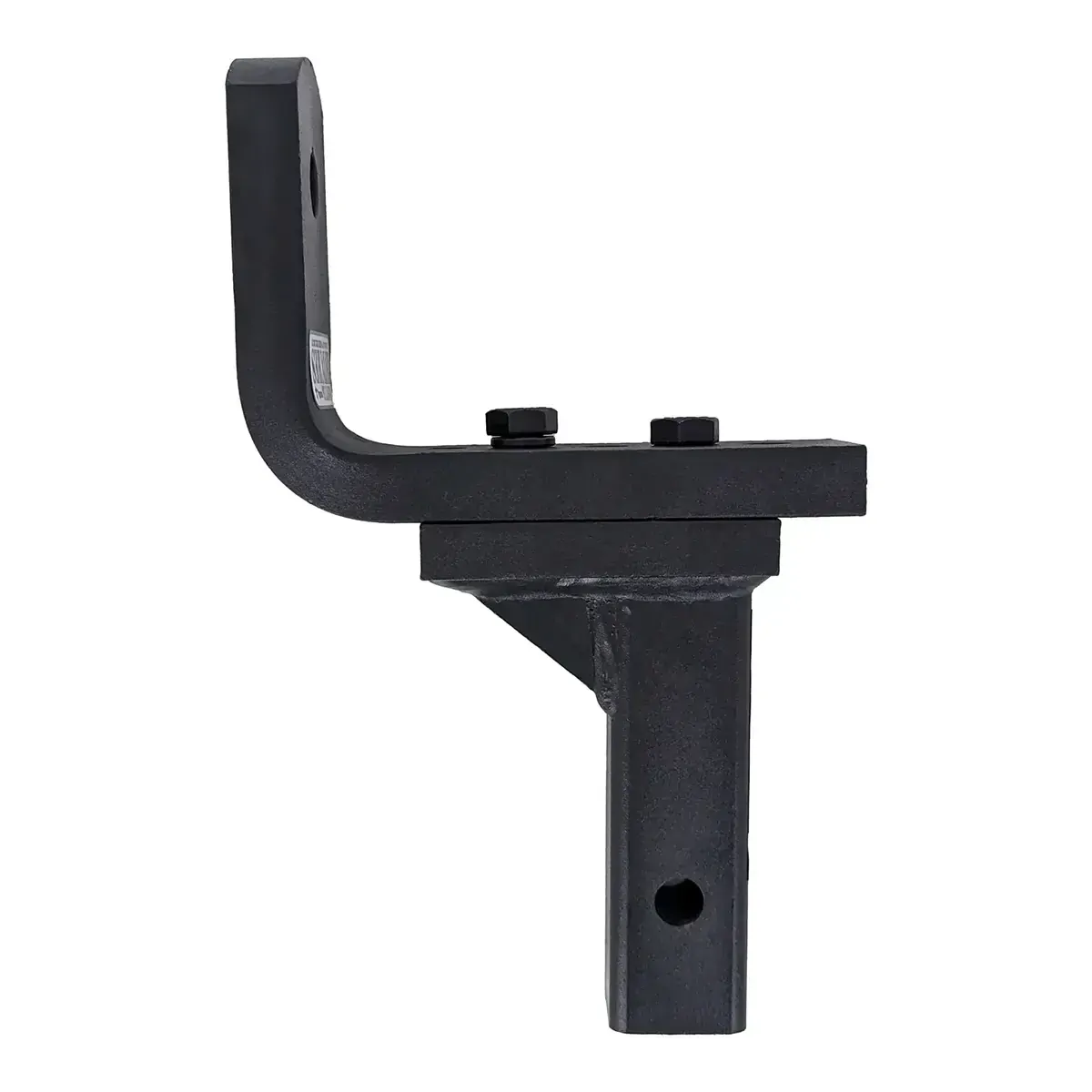

Adjustable Ball Mount Extra Heavy Duty 4000kg
Adjustable & reversible - 12 stages
6 stages of drop
80mm / 110mm / 130mm / 140mm / 160mm / 190mm
6 stages of rise
50mm / 80mm / 105mm / 110mm / 135mm / 165mm
10mm dual support gussets for added strength
New model with 3 pin holes (ranger short shank compatible)

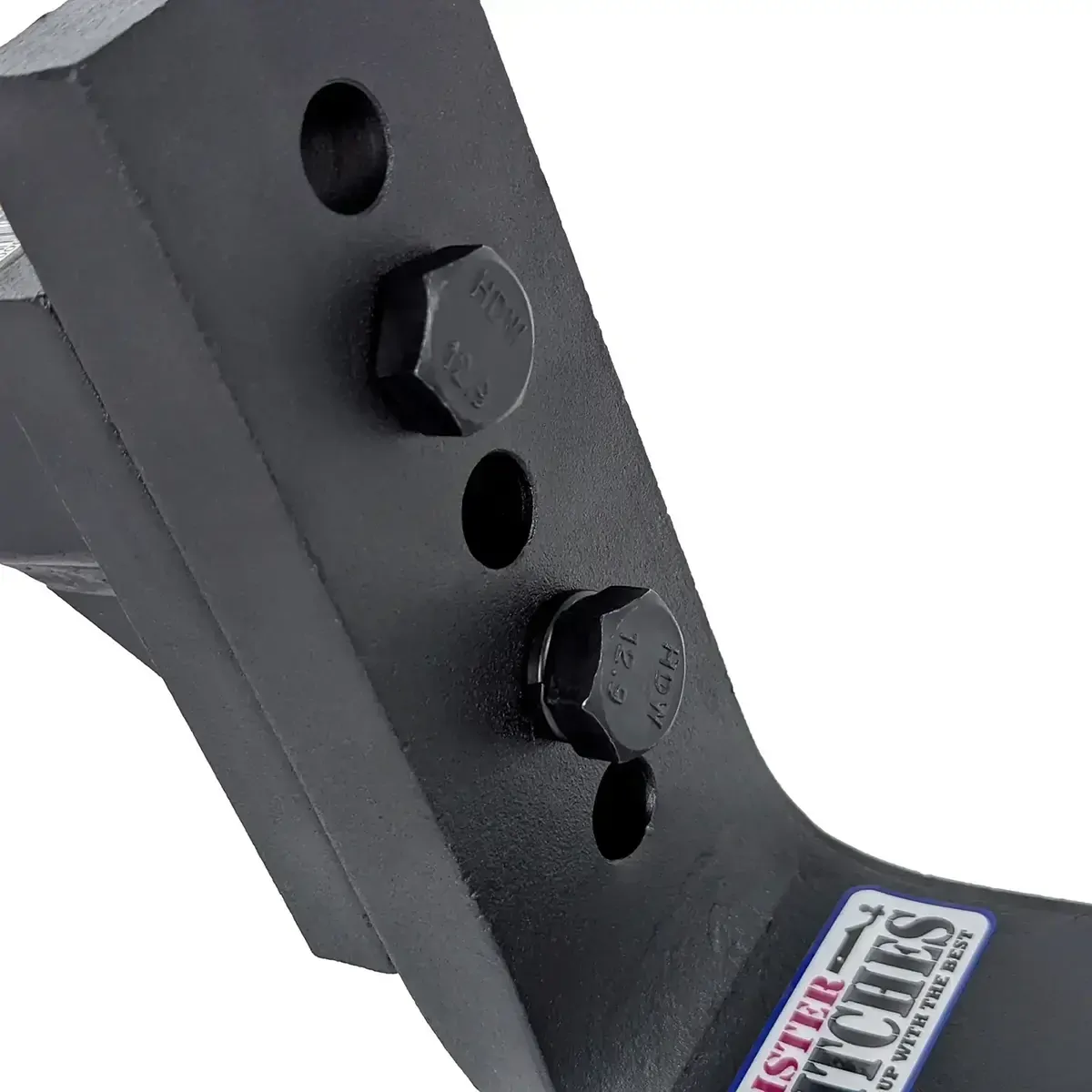

Uses 12.9 grade high tensile 16mm bolts
25mm x 75mm heavy duty ball platform
Matt black seaguard finish
Robotic welded for consistent quality
CNC machined for maximum accuracy
Fits 2"" x 2"" towbar receivers
Suits stone stomper and most couplings
Load Rating: 4000kg

Ball Weight: 400kg

Length: 266mm / 305mm / 331mm (measured from centre of pin hole to centre of ball hole)

End of shank to gusset: 164mm

Measurements are approximate


(MHABM-5XHD)

SKU MHABM-5XHD
Brand Mister Hitches
Shipping Weight 5.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
