SKU: RTSF1903GT

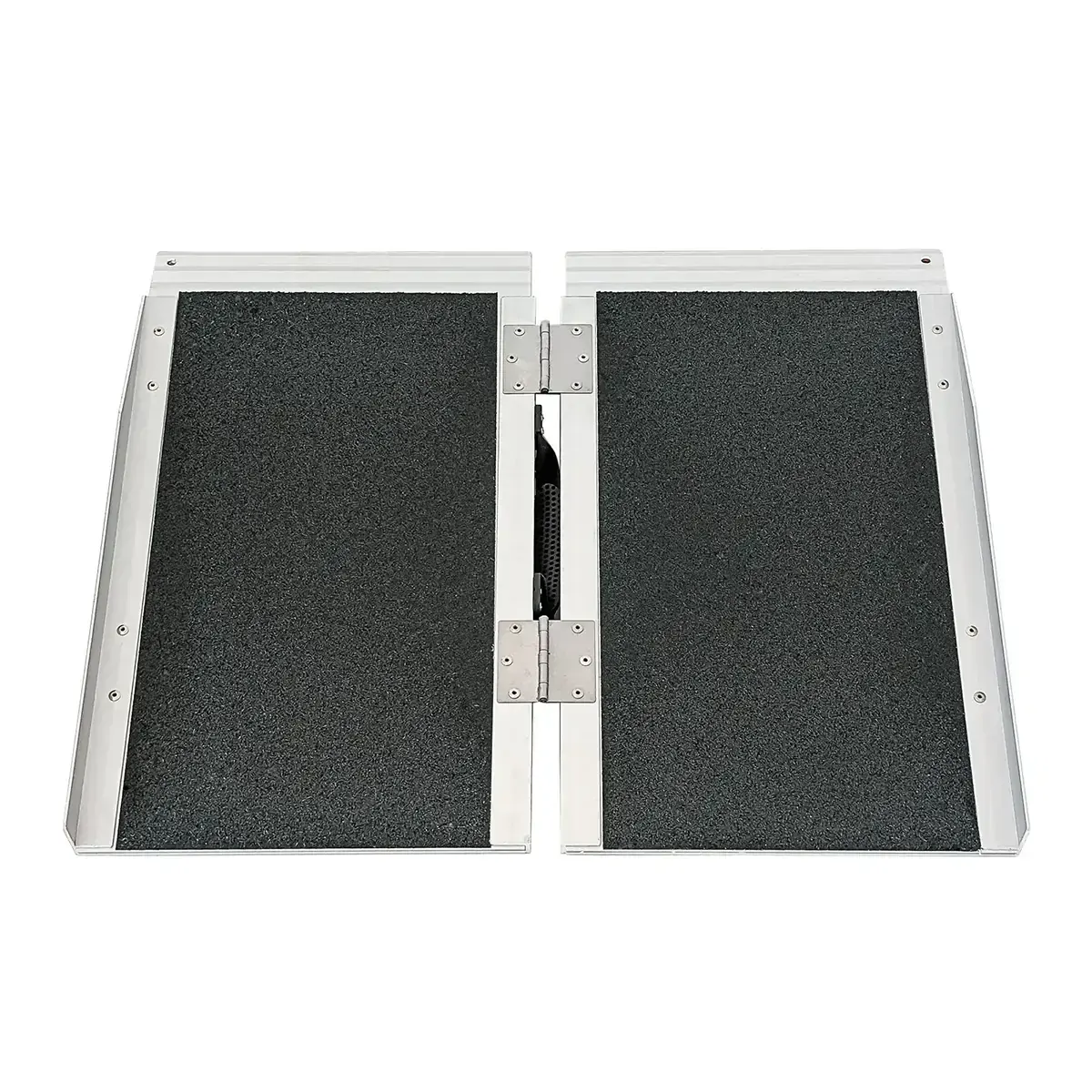

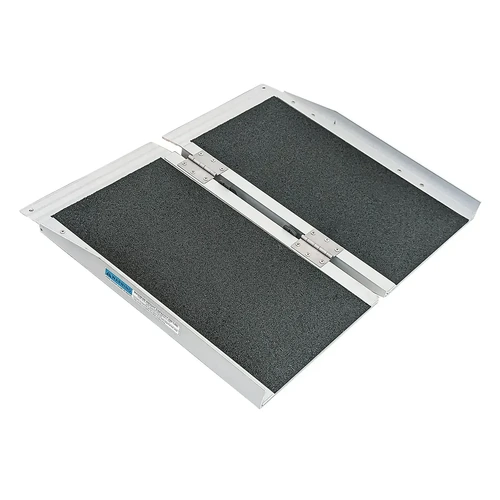

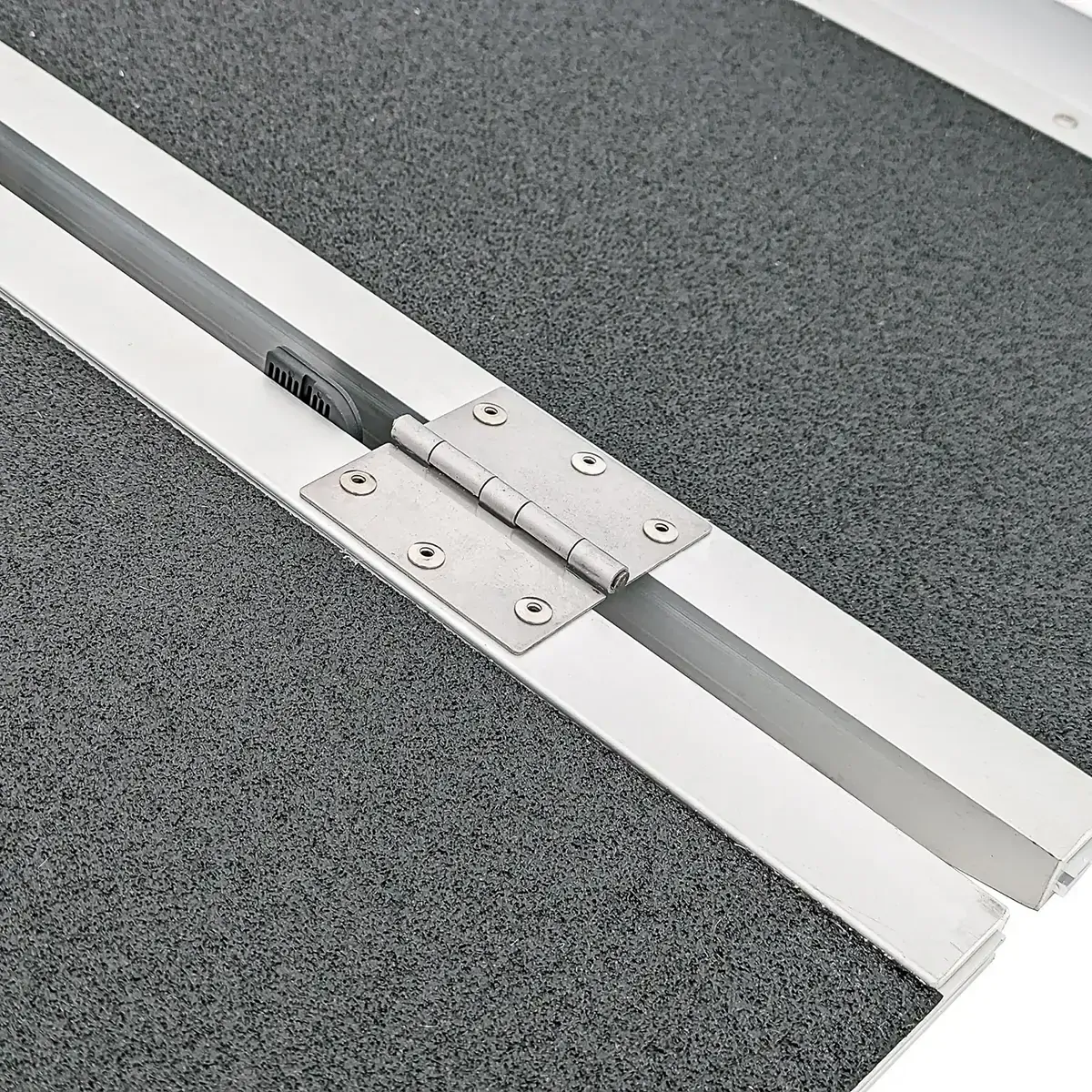

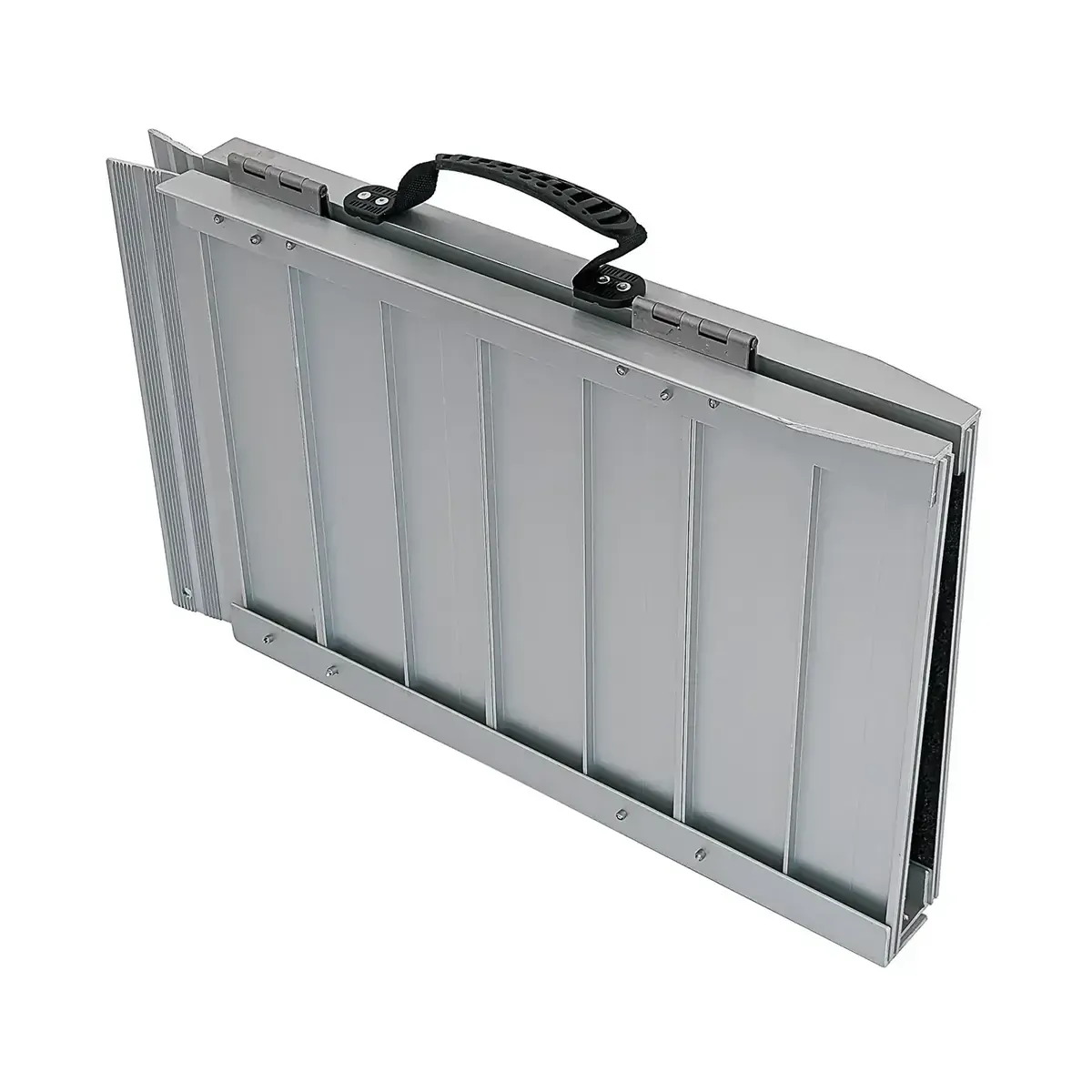

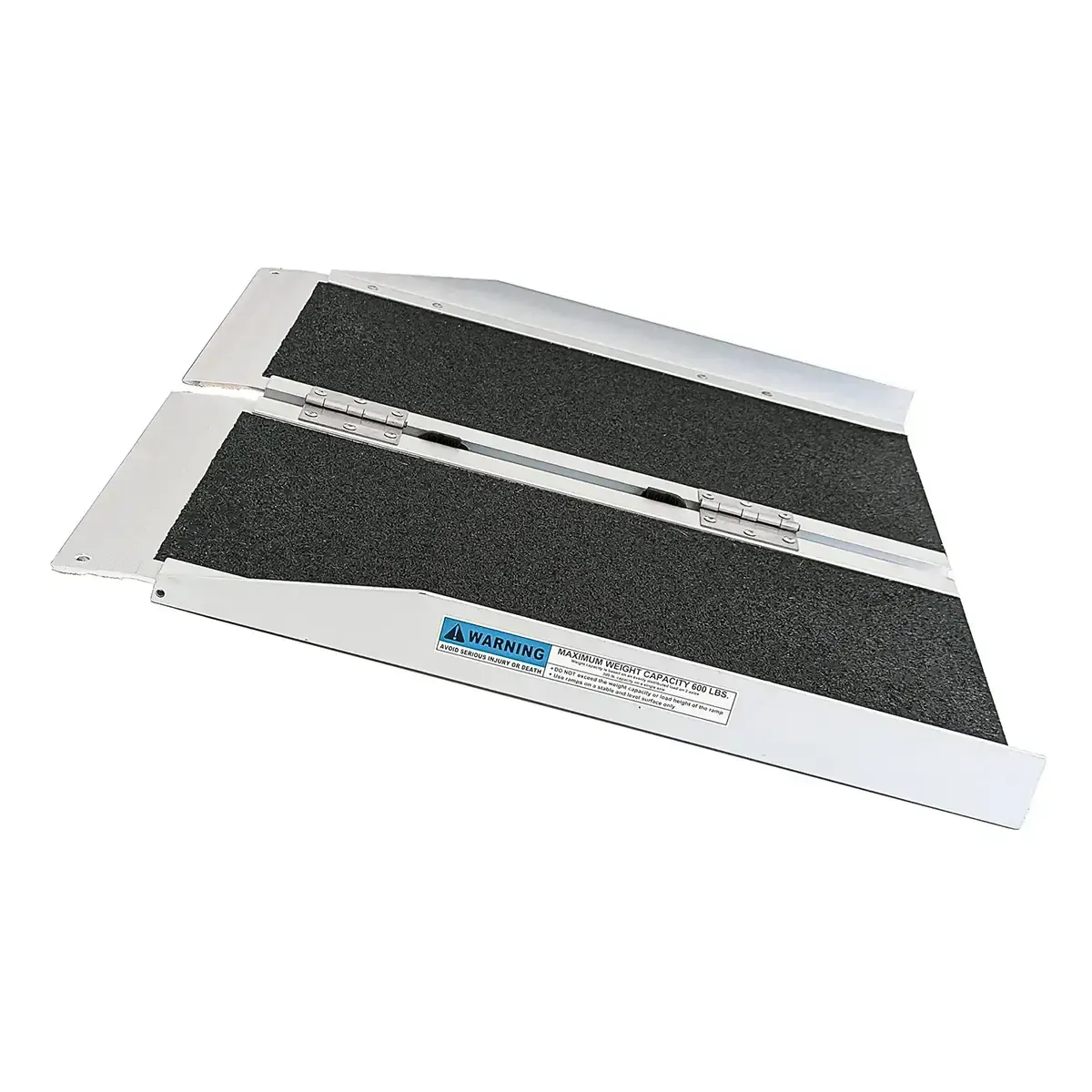

Loading and unloading will be made easier with this Portable Aluminium Folding Loading Wheelchair Ramp. Various sizes are available ranging from 2 Feet – 6 Feet. Made from super strong aluminium construction which is light-weight and portable to use. The ramp is centre folding with a convenient carry handle.
Ideal for indoor and outdoor use with a maximum load capacity of 272kg. (Weight rating based on evenly distributed load on 2 axles)

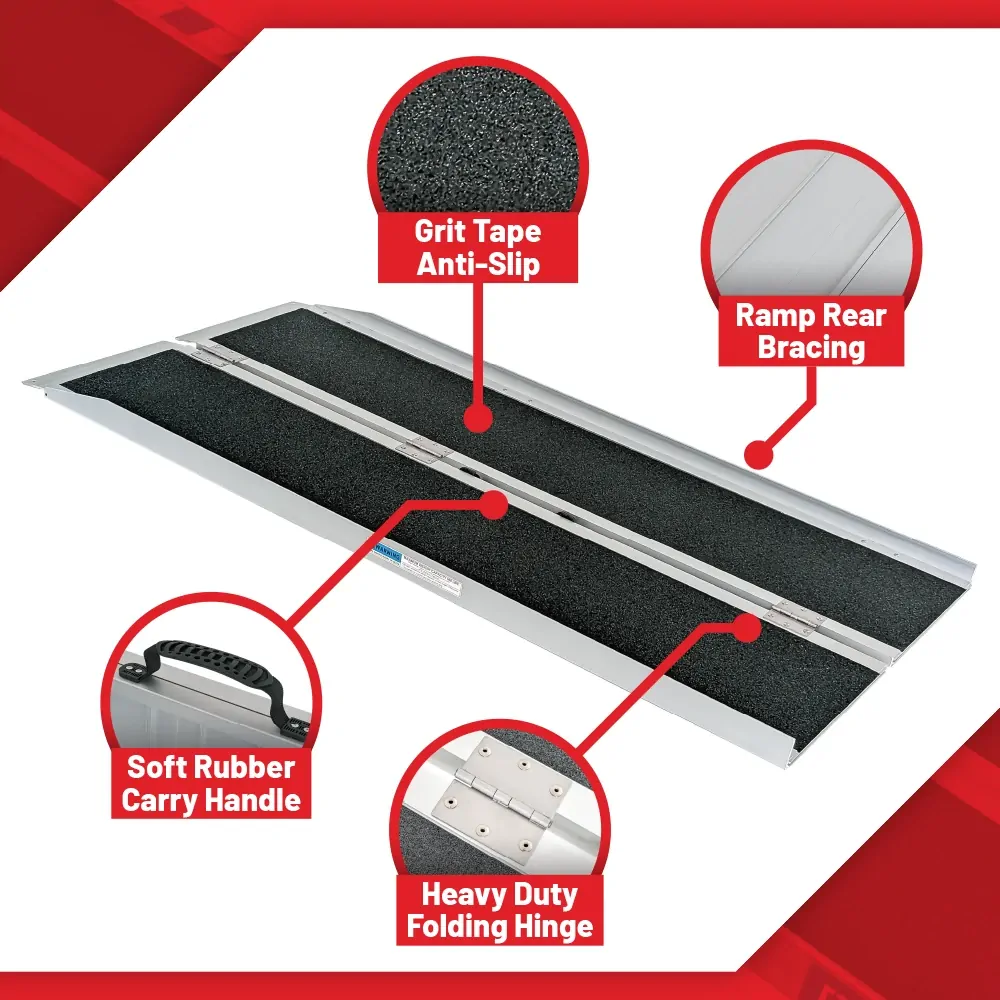

Features:

Portable Aluminium Folding Loading Wheelchair Ramp
Sizes available from 2 Feet Long to 6 Feet
Maximum Load Capacity of 272 kg
Super Strong Aluminium Construction
Light-weight & Portable

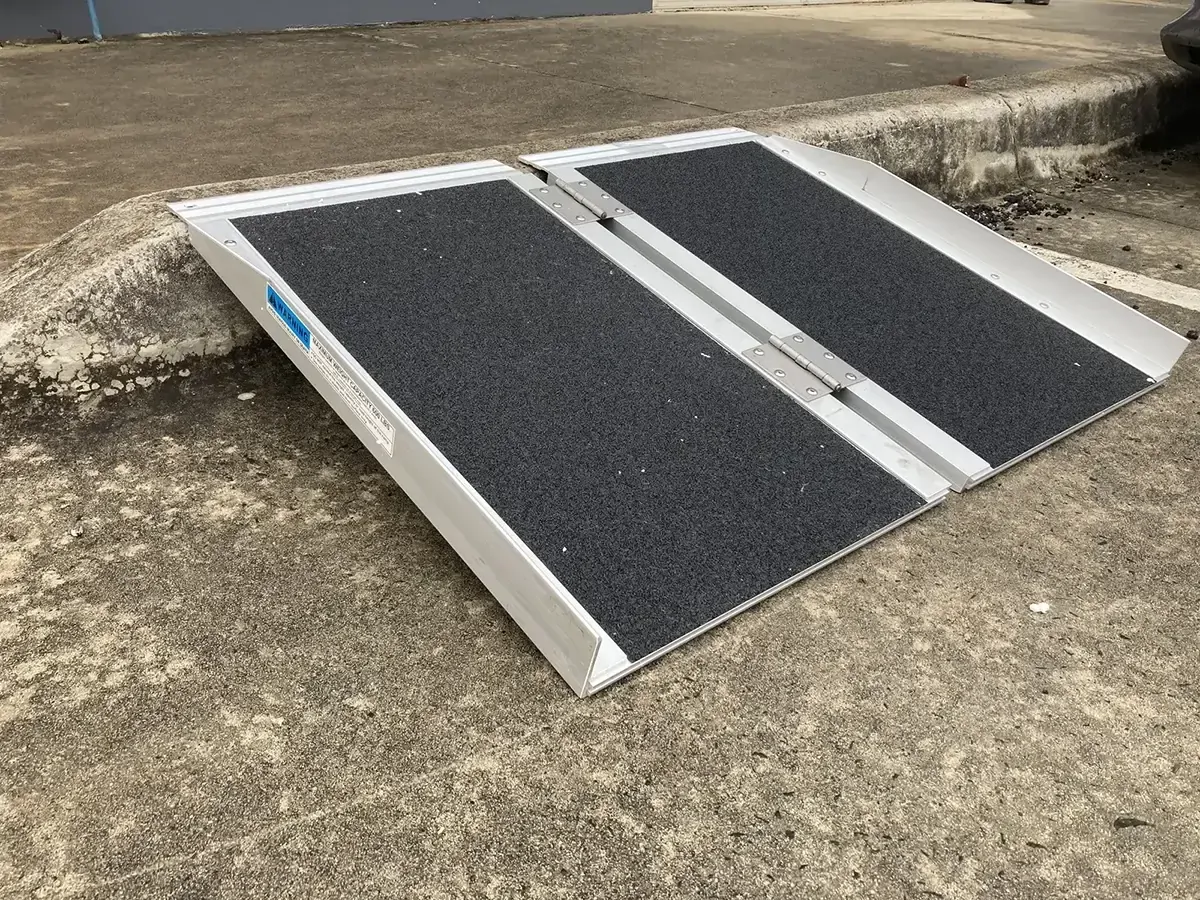

Suitable for Curbs, Steps & many more applications
Surface - Grit Tape
Multi-purpose, Ideal for Indoor & Outdoor Use

Ramp not designed for permanent outdoor use, as grit tape surface my deteriorate if exposed to the elements for extended periods

Specifications:

A gradient ratio of 1:10 has been applied below.

These are the recommended maximum heights based on Australian standards

2 Foot / 60cm Ramp - Maximum height of 6cm
3 Foot / 90cm Ramp - Maximum height of 9cm
4 Foot / 120cm Ramp - Maximum height of 12cm
5 Foot / 150cm Ramp - Maximum height of 15cm
6 Foot / 180cm Ramp - Maximum height of 18cm

Please note: For heights over 19cm, a gradient ratio of 1:14 should be applied

Approximate Size

2 Foot 60cm x 74cm - Weight 5 KG
3 Foot 90cm x 74cm -Weight  7.5 KG
4 Foot 120cm x 74cm - Weight 11 KG
5 Foot 150cm x 74cm - Weight 13.5 KG
6 Foot 180cm x 74cm - Weight 14.5KG
