Ramptec 4 Foot Aluminium Wheelchair / Scooter Ramp Portable - Punch Plate
SKU: RTSF1904PP

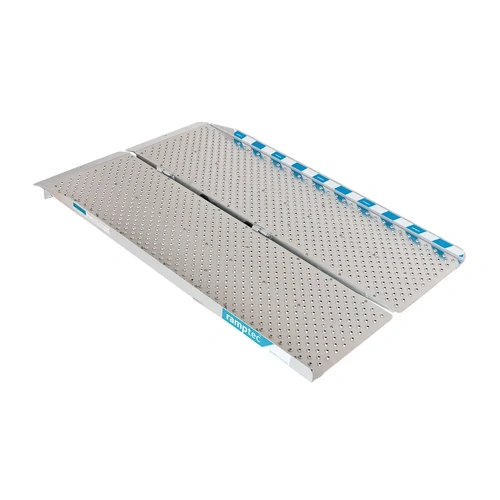

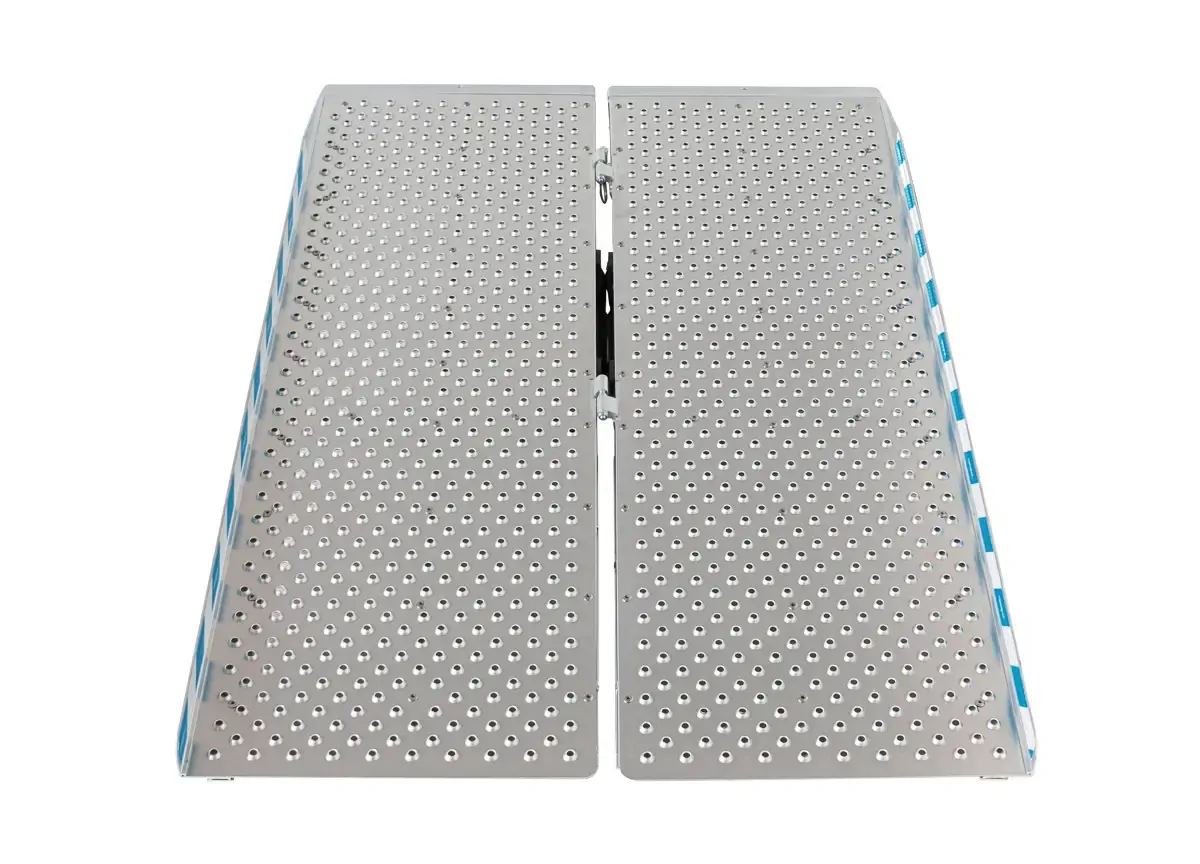

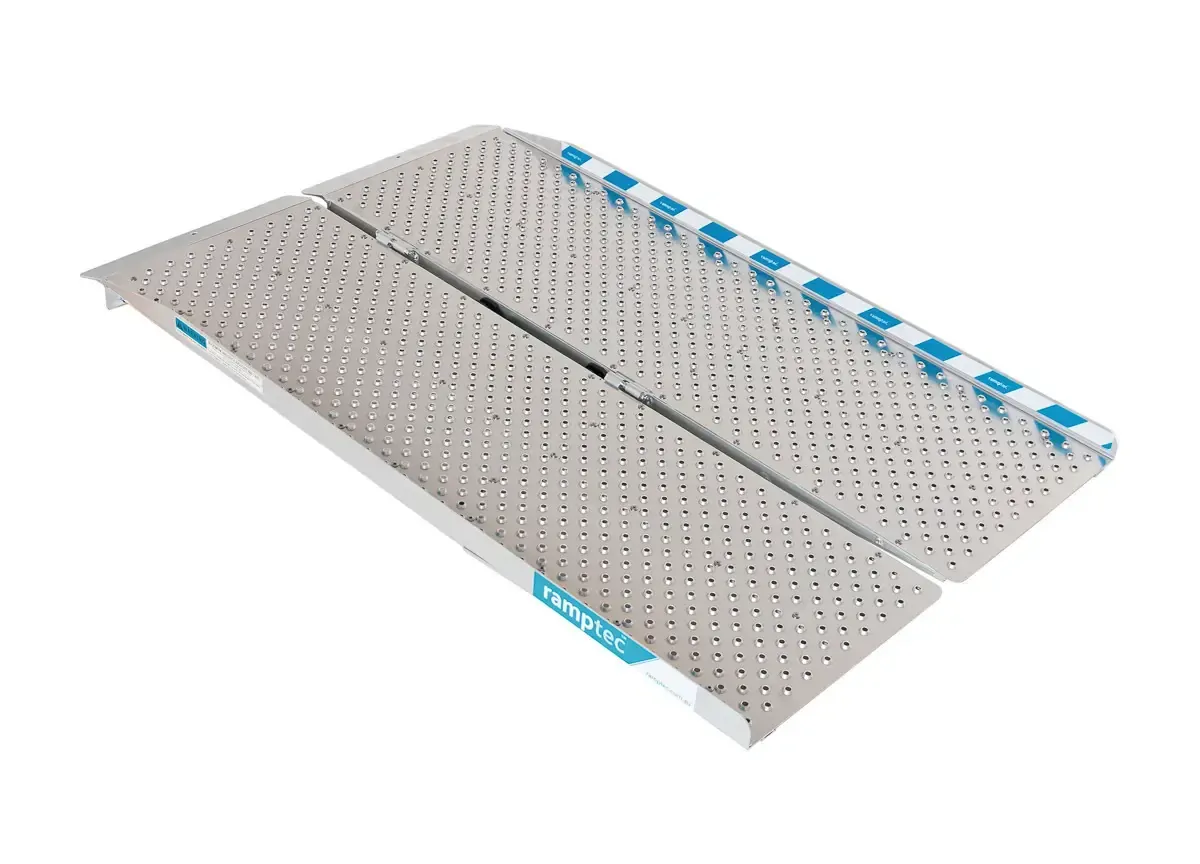

Loading and unloading will be made easier with this Portable Aluminium Folding Loading Wheelchair Ramp. Various sizes are available ranging from 2 Foot – 6 Foot. Made from super strong aluminium construction which is light-weight and portable to use. The ramp is centre folding with a convenient carry handle.
Ideal for indoor and outdoor use with a maximum load capacity of 363kg. (Weight rating based on evenly distributed load on 2 axles)
Portable Aluminium Folding Loading Wheelchair Ramp
Sizes available from 2 Feet Long to 6 Feet
Maximum Load Capacity of 363 kg
Super Strong Aluminium Construction
Light-weight & Portable

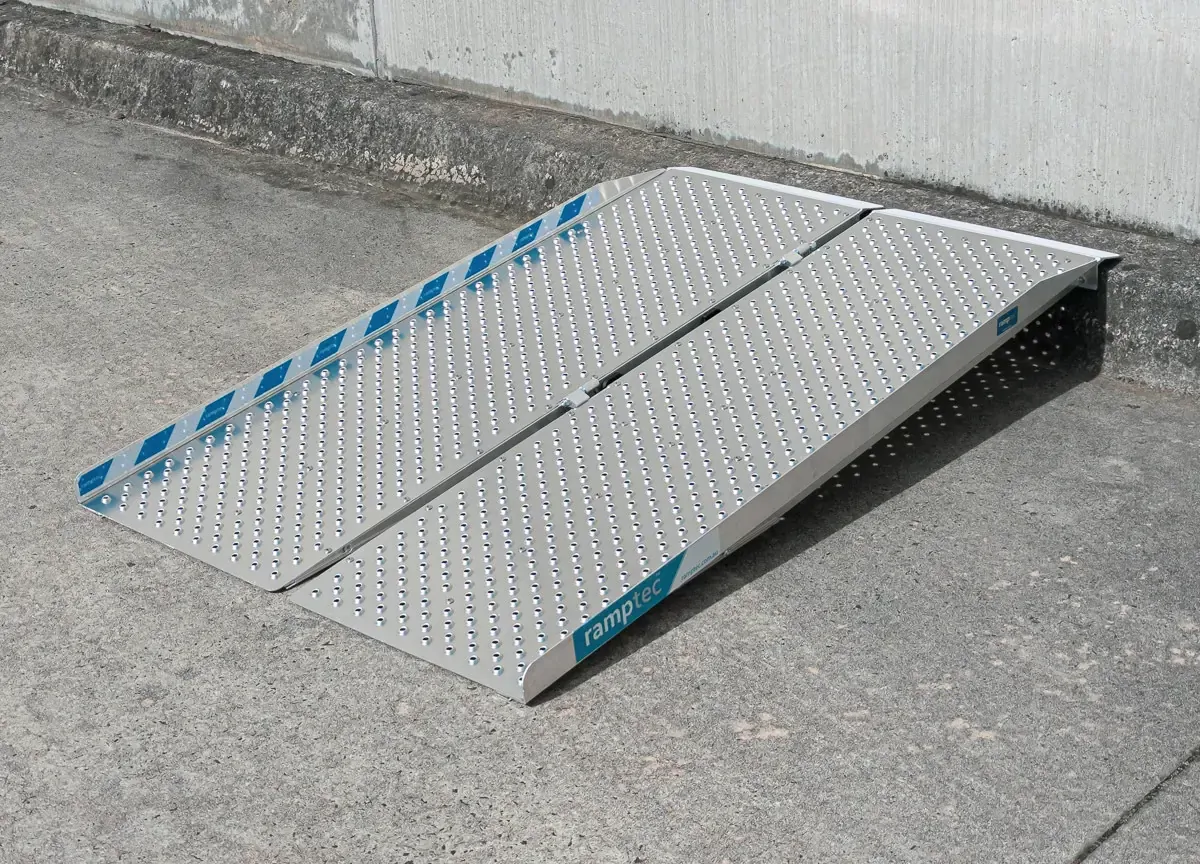

Suitable for Curbs, Steps & many more applications

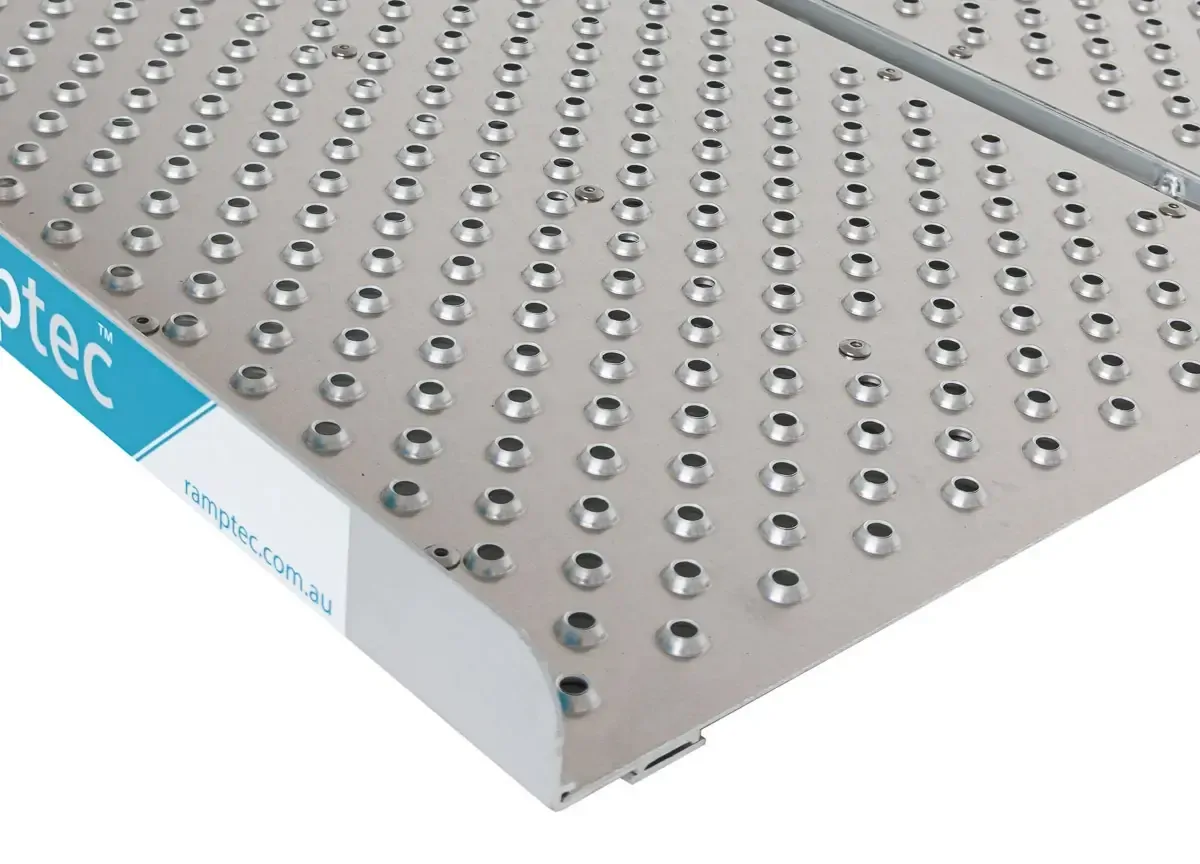

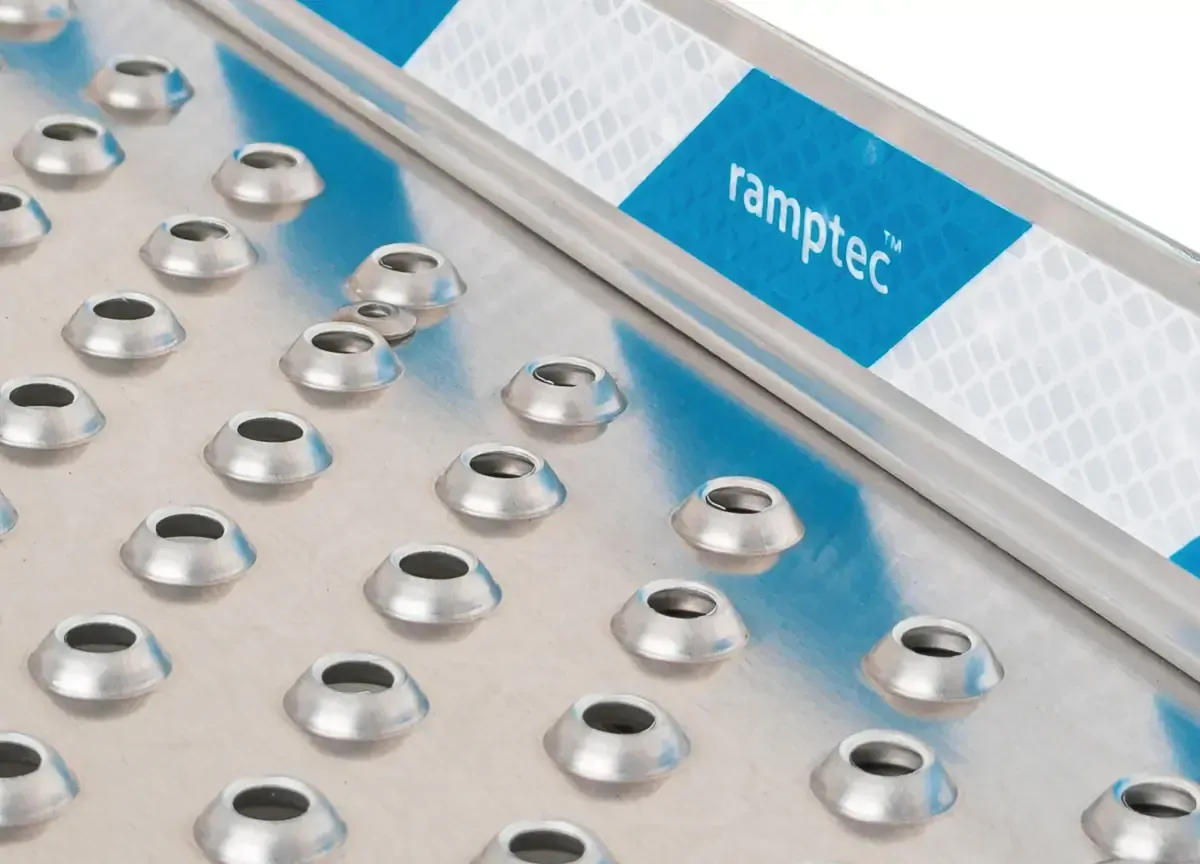

Surface - Punch Plate
Multi-purpose, Ideal for Indoor & Outdoor Use

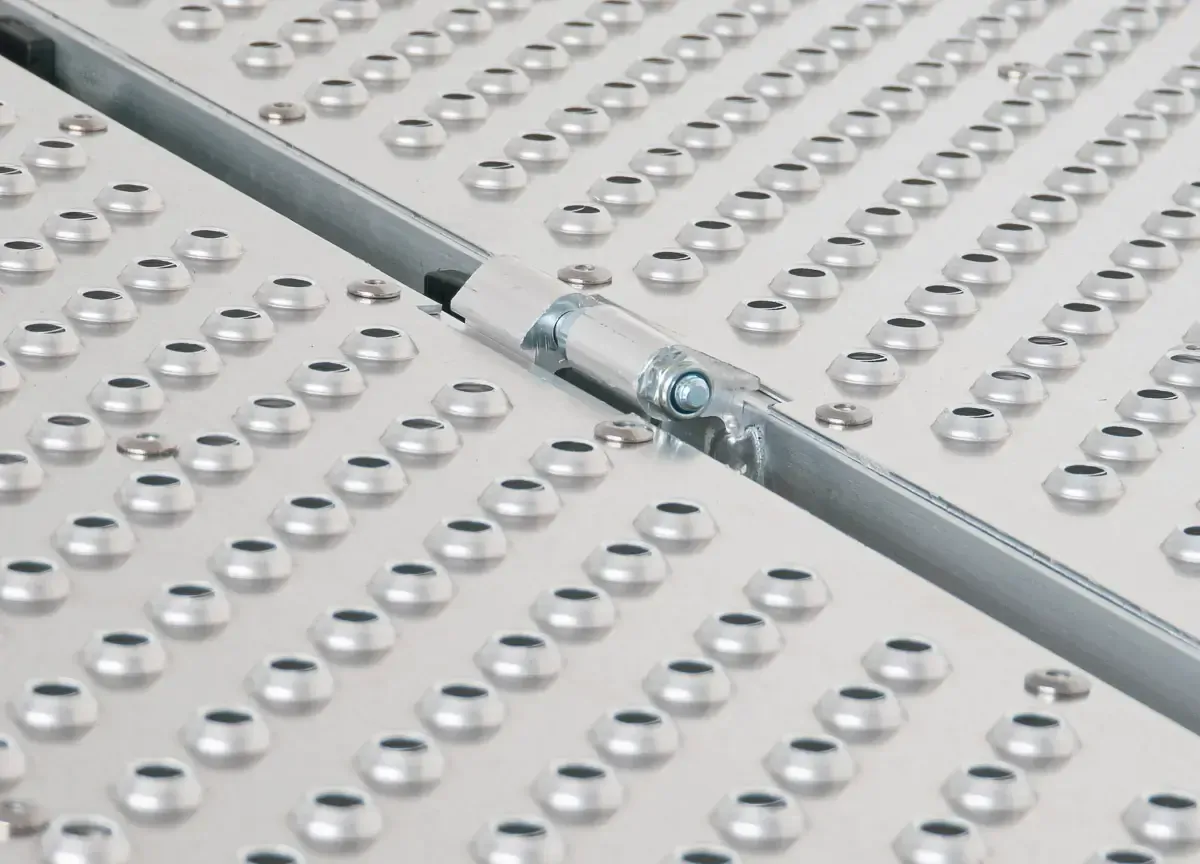

Ability to separate into two sections releasing hinge spring pin
Specifications:
A gradient ratio of 1:10 has been applied below.
These are the recommended maximum heights based on Australian standards
2 Foot / 60cm Ramp - Maximum height of 6cm
3 Foot / 90cm Ramp - Maximum height of 9cm
4 Foot / 120cm Ramp - Maximum height of 12cm
5 Foot / 150cm Ramp - Maximum height of 15cm
6 Foot / 180cm Ramp - Maximum height of 18cm
Please note: For heights over 19cm, a gradient ratio of 1:14 should be applied
Approximate Size
2 Foot 60cm x 75cm - Weight 4.5 KG
3 Foot 90cm x 75cm -Weight 6.5 KG
4 Foot 120cm x 75cm - Weight 9.5 KG
5 Foot 150cm x 75cm - Weight 10.3 KG
6 Foot 180cm x 75cm - Weight 12.4 KG
(RTSF1904PP)
SKU | RTSF1904PP |
Brand | Ramptec |
Shipping Weight | 10.7000kg |
Shipping Width | 0.440m |
Shipping Height | 0.150m |
Shipping Length | 1.320m |
Shipping Cubic | 0.087120000m3 |
